Sensors¶

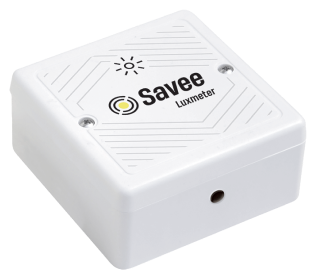

Luxmeter¶

A sensor used to automate the control of a device according to the level of ambient light intensity. The luxmeter has an adjustable time delay value to eliminate short-term fluctuations in light intensity (e.g. shadows cast by cloud movement).

These devices should be placed close to the controlled light groups and in an open space so as not to be affected by light from the controlled lights.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.

Wiring Example

Temperature and Humidity Sensor¶

A sensor used to automate the control of a device according to the level of surrounding temperature and humidity. The device has an adjustable time delay value to eliminate short-term fluctuations of measured data.

These devices should be placed close to the controlled light groups and in an open space so as not to be affected by external devices.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.

Wiring Example
