Infrastructure¶

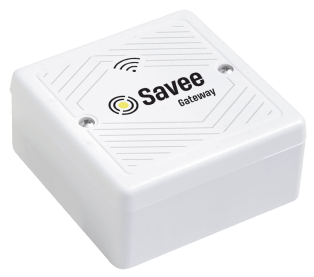

Gateway¶

The gateway takes care of communications between the server and other Savee devices. It is possible to pair up to 127 devices per gateway. The gateway is powered by 24 V passive PoE, but it is also possible to use a PoE power injector with an adapter.

Network configuration is managed through a USB type B connector, using a standalone configuration tool.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems. In the case of mounting several gateways, assure that there is a distance of at least 100 mm between two gateways.

You can learn how to pair a gateway to a Savee network here.

Wiring Example 1

Wiring Example 2

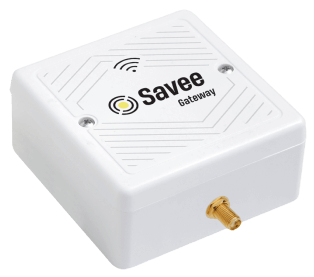

Gateway - External Antenna Connector¶

The gateway takes care of communications between the server and other Savee devices. It is possible to pair up to 127 devices per gateway. The gateway is powered by 24 V passive PoE, but it is also possible to use a PoE power injector with an adapter.

This design uses a standard SMA connector for an external antenna operating at 868 MHz.

Network configuration is managed through a USB type B connector, using a standalone configuration tool.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems. In the case of mounting several gateways, assure that there is a distance of at least 100 mm between two gateways.

You can learn how to pair a gateway to a Savee network here.

Wiring Example 1

Wiring Example 2

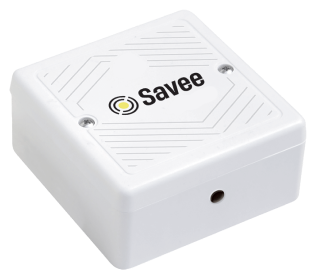

Repeater¶

A device designed to extend wireless mesh communication within the Savee network. The repeater does not control any loads or perform phase switching; its sole function is to strengthen and forward the wireless signal, ensuring reliable communication across larger installations or areas with obstacles.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.

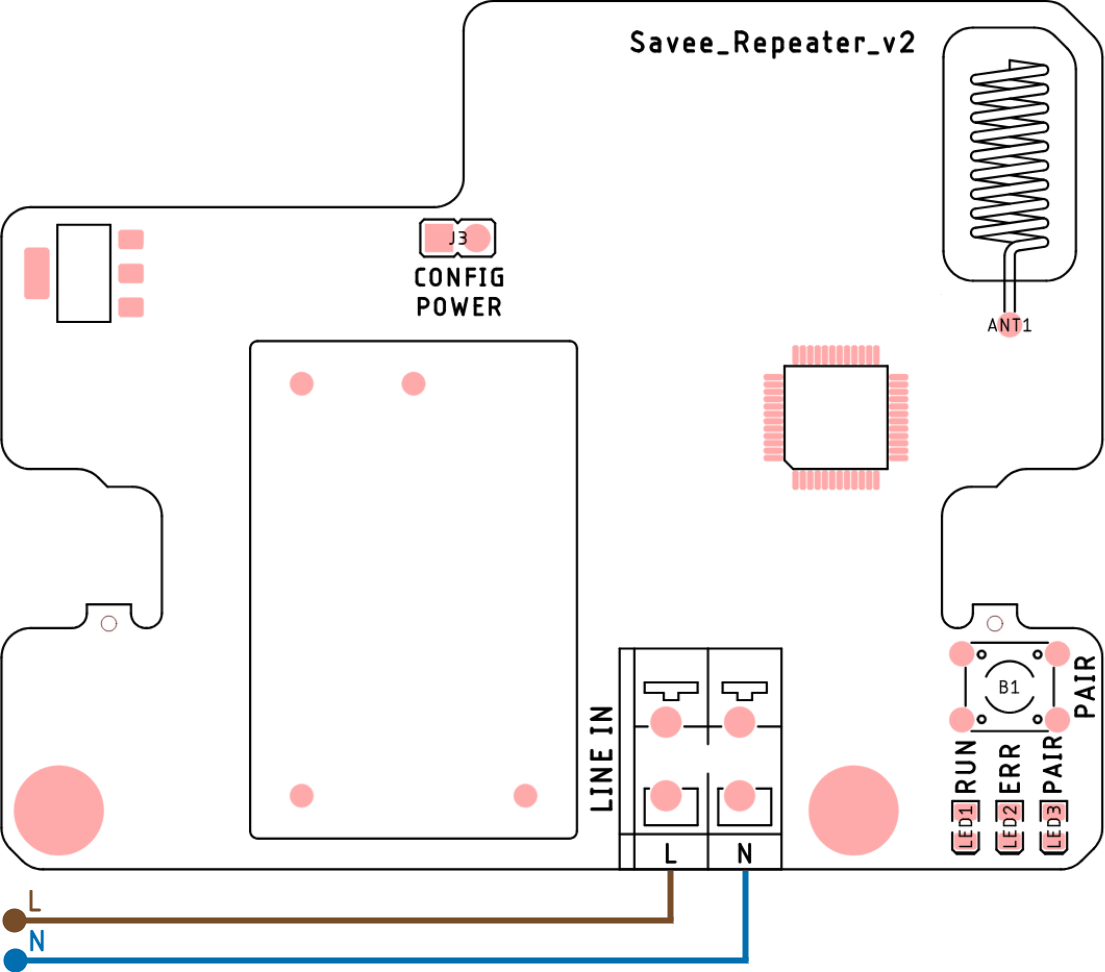

Wiring Example

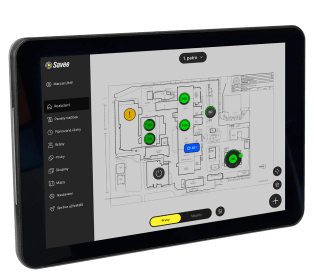

Touch Display 10"¶

A touch screen designed for easy control of the Savee system using the virtual plan of the building or virtual buttons. The touch screen can be mounted on the wall in office spaces using a conventional VESA 75x75 mm bracket. It communicates using LAN via Ethernet or Wi-Fi and is powered by a 12 V power supply or passive PoE.

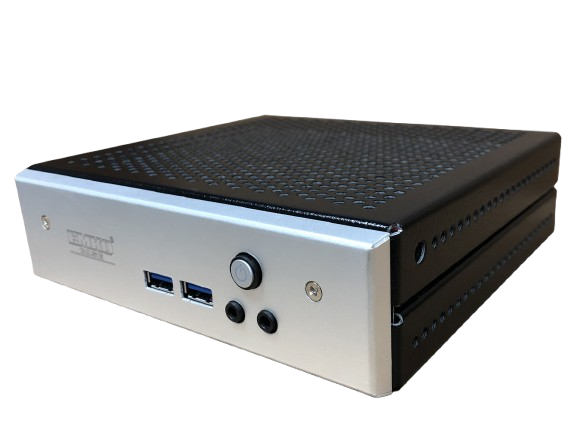

HW Industrial Server¶

A secure in-house industrial server with Linux (Debian) and the Savee application installed on the building's internal network. Together with the application, the server controls all connected devices of the system and ensures the execution of set automations and time schedules.
