Controls¶

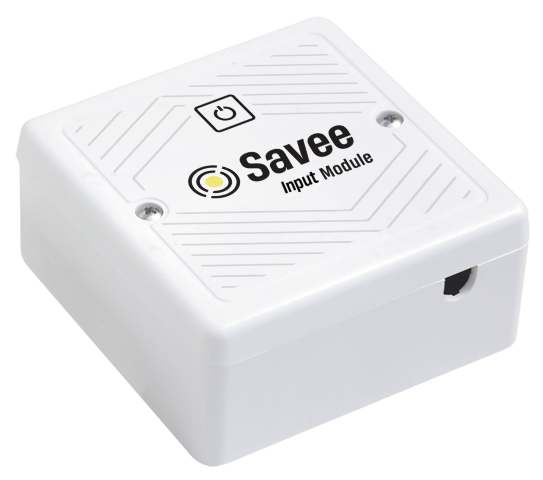

AC Input Module¶

A device designed to monitor up to four independent AC input channels. Each channel detects the presence of an incoming AC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other AC-powered signals into the automation system.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.

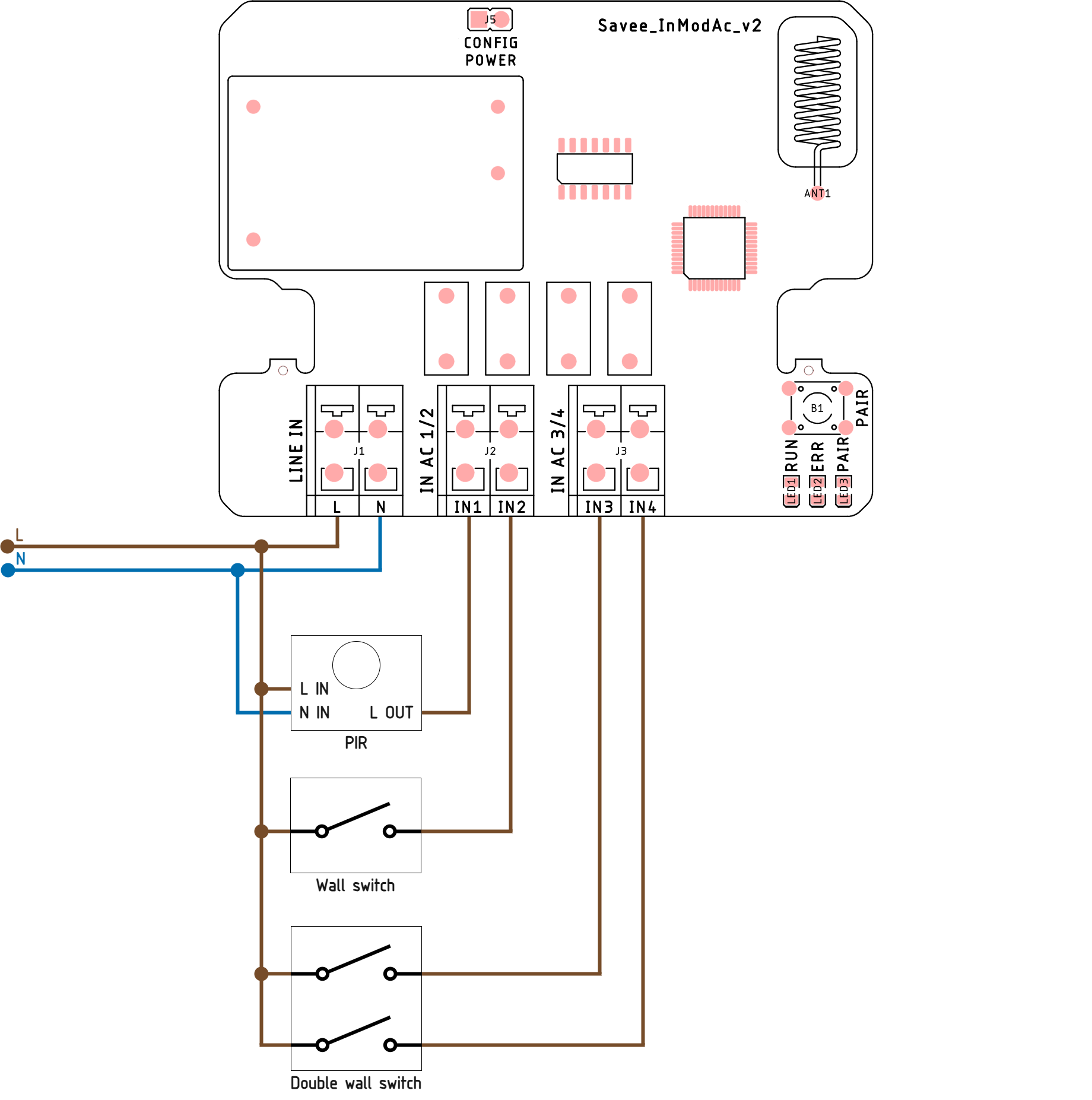

Wiring Example 1

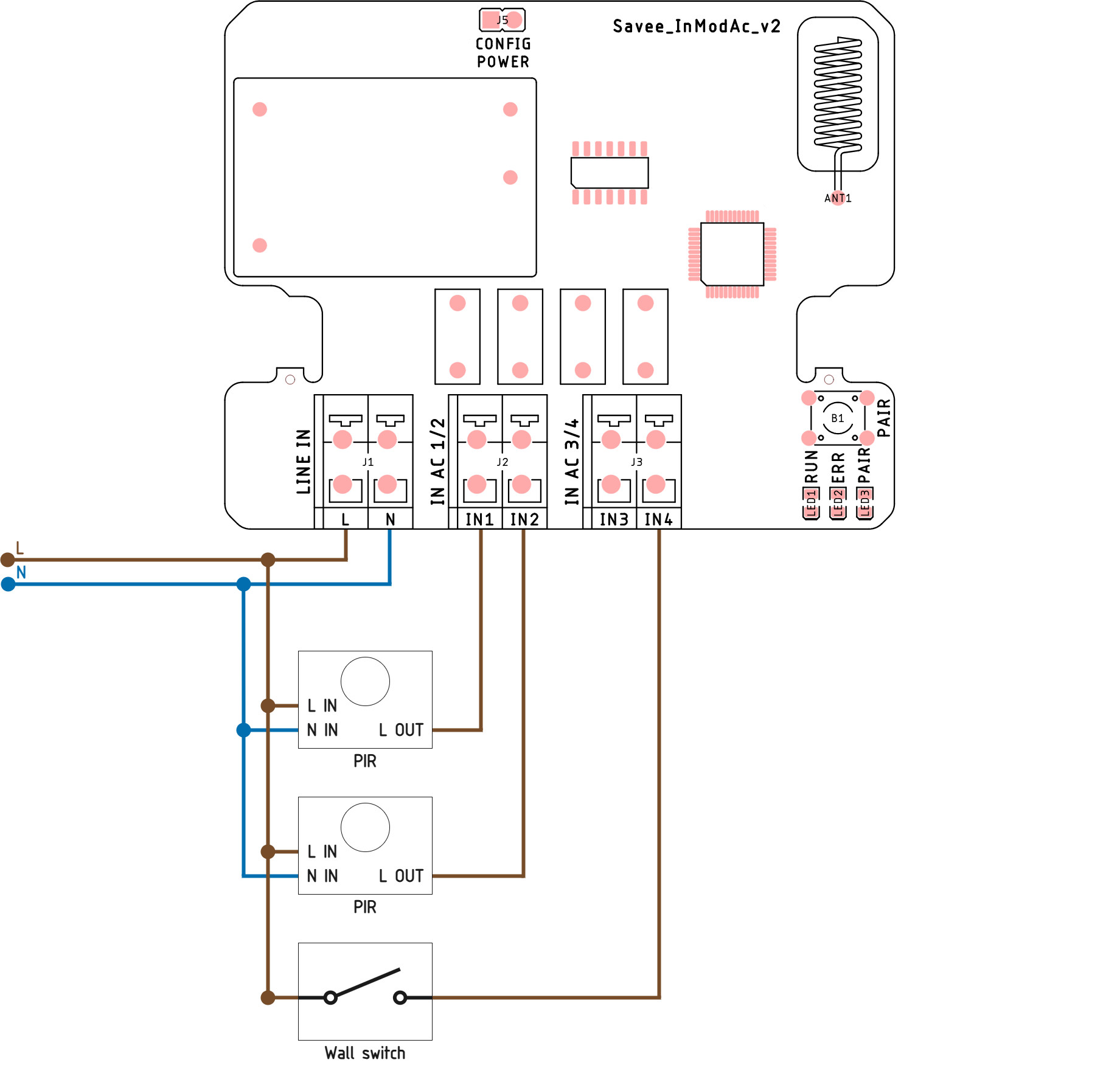

Wiring Example 2

DC Input Module¶

A device designed to monitor up to four independent DC input channels. Each channel detects the presence of an incoming DC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other DC-powered signals into the automation system.

It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.

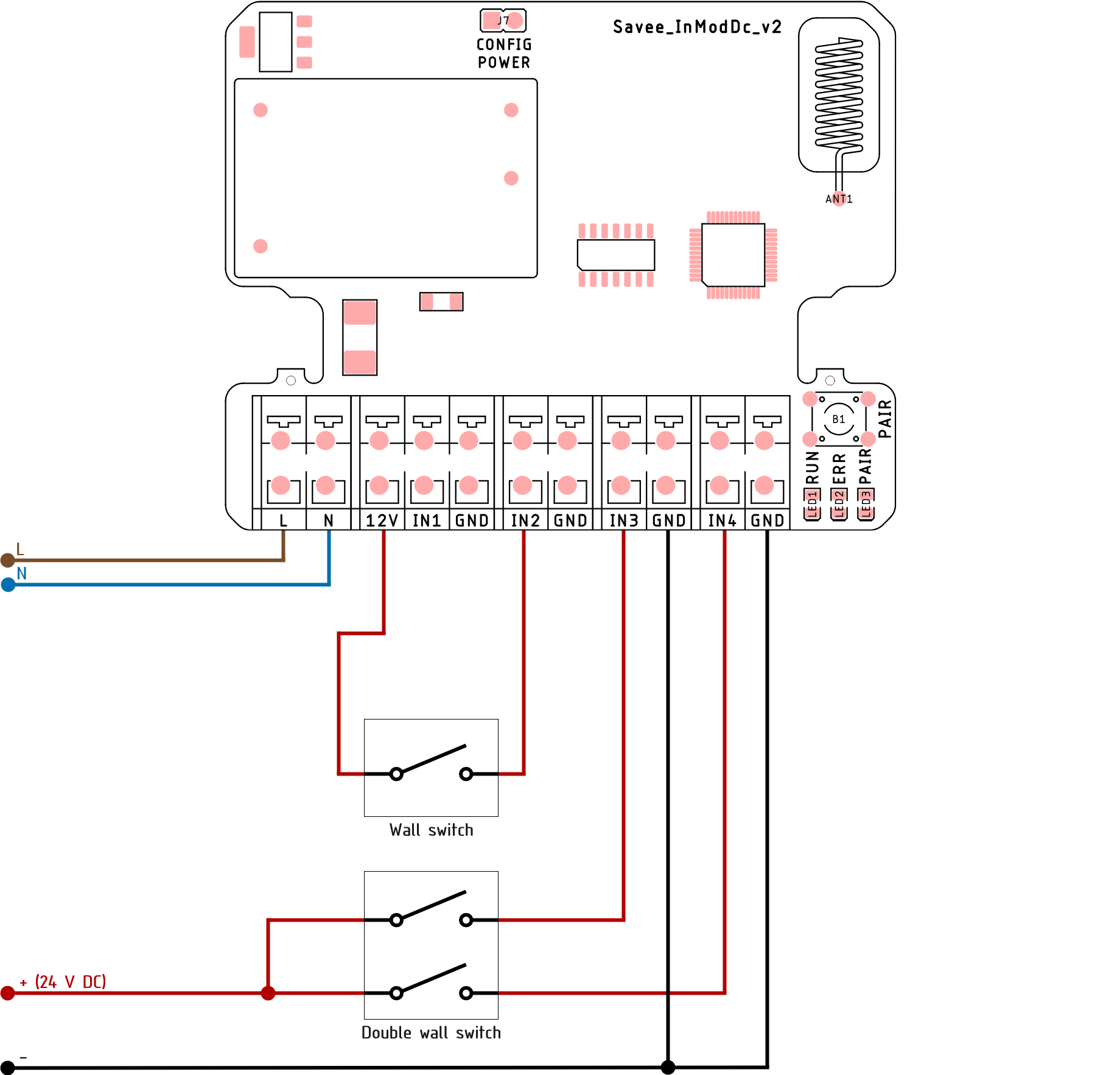

Wiring Example

Button Module - 5 Inputs¶

A control module containing five configurable button inputs. This module is supplied as bare electronics without protection. The device can be placed in a plastic box with buttons and can be used to control lights and machines.

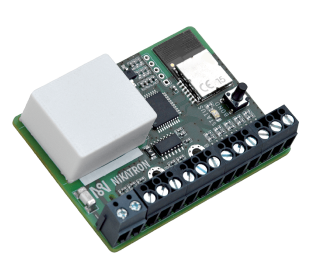

Button Module - 15 Inputs¶

A control module containing fifteen configurable button inputs. This module is supplied as bare electronics without protection. The device can be placed in a plastic box with buttons and can be used to control lights and machines.

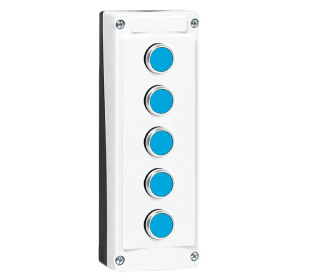

Industrial Buttons¶

An industrial control panel module containing five buttons with LED status indication. This is a mechanically resistant design intended for industrial halls and harsh environment.

Part of the industrial buttons is the 5 module button input mentioned above.

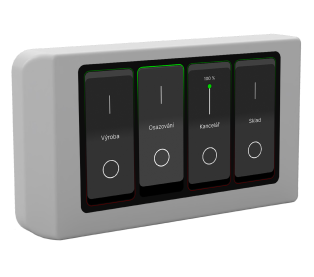

Virtual Buttons 5"¶

A five-inch control TFT display containing up to four virtual buttons in a modern design suitable for use in office spaces. This display can be used instead of a two-position wall switch.
