Actuators¶
Relay Module¶
A wired device intended for installation within a distribution box. This device enables the switching of up to six devices, such as relays or contactors, which can in turn switch individual lights, lighting groups, or machinery.
The device communicates directly with the Savee server through an Ethernet interface. It includes six switched outputs with a maximum switching current of 4 A per output, with a recommended continuous load of 3 A to extend relay lifespan.
Network configuration is managed through a USB type B connector, using a standalone configuration tool. The device can then be controlled via the Savee application.
The device mounts to a DIN rail that meets the DIN 43880 standards using a mounting slot with a foot lock for secure attachment. The electrical terminals support wire connections with a maximum cross-section of 1.5 mm².
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 2,5 W |
| Power Dissipation | 3 W |
| Number of Switched Outputs | 6 outputs |
| Max. Switching Current | 3 A per output |
| Max. Peak Switching Current | 4 A per output |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107,6 x 89,7 x 60,7 mm |

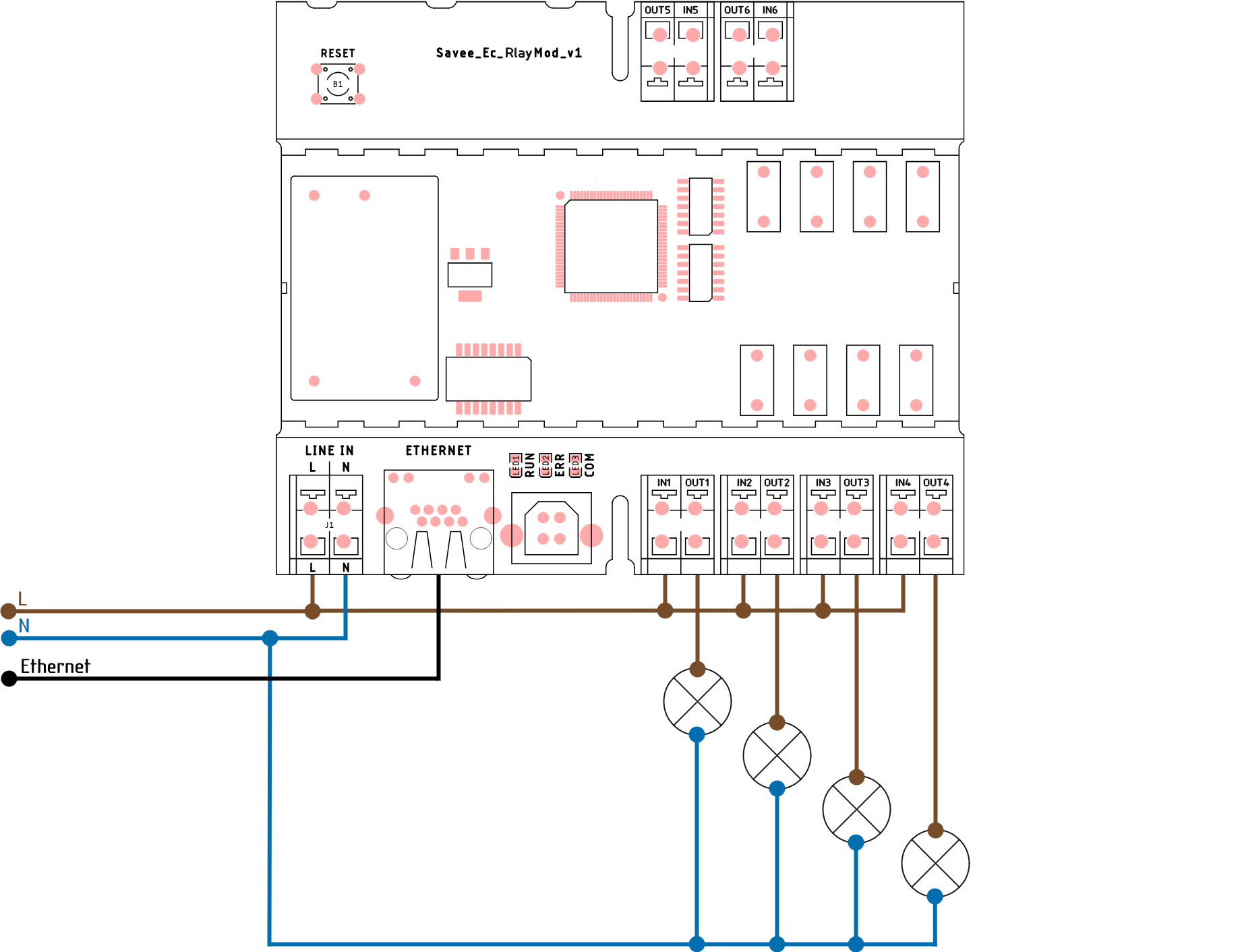

Wiring Example

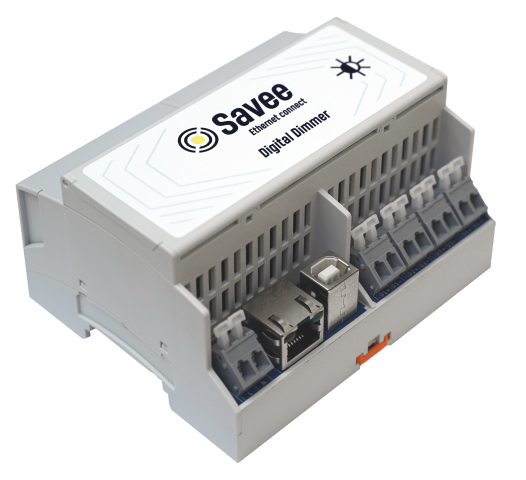

Digital Dimmer¶
A wired device designed for installation within a distribution box. This device provides lighting intensity regulation using the DALI protocol.
The device communicates directly with the Savee server through an Ethernet interface and supports up to 64 lights connected to the bus, allowing for either group control (broadcast) or individual control of each light. The lighting intensity can be controlled in the range of 0-100 % in steps of 10 %.
Network configuration is managed through a USB type B connector, using a standalone configuration tool. The device can then be controlled via the Savee application.
The device mounts to a DIN rail that meets the DIN 43880 standards using a mounting slot with a foot lock for secure attachment. The electrical terminals support wire connections with a maximum cross-section of 1.5 mm².
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 2,1 W |
| Power Dissipation | 2,6 W |
| Number of DALI outputs | 4 outputs |
| Maximum DALI devices | 64 lights per output |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107,6 x 89,7 x 60,7 mm |

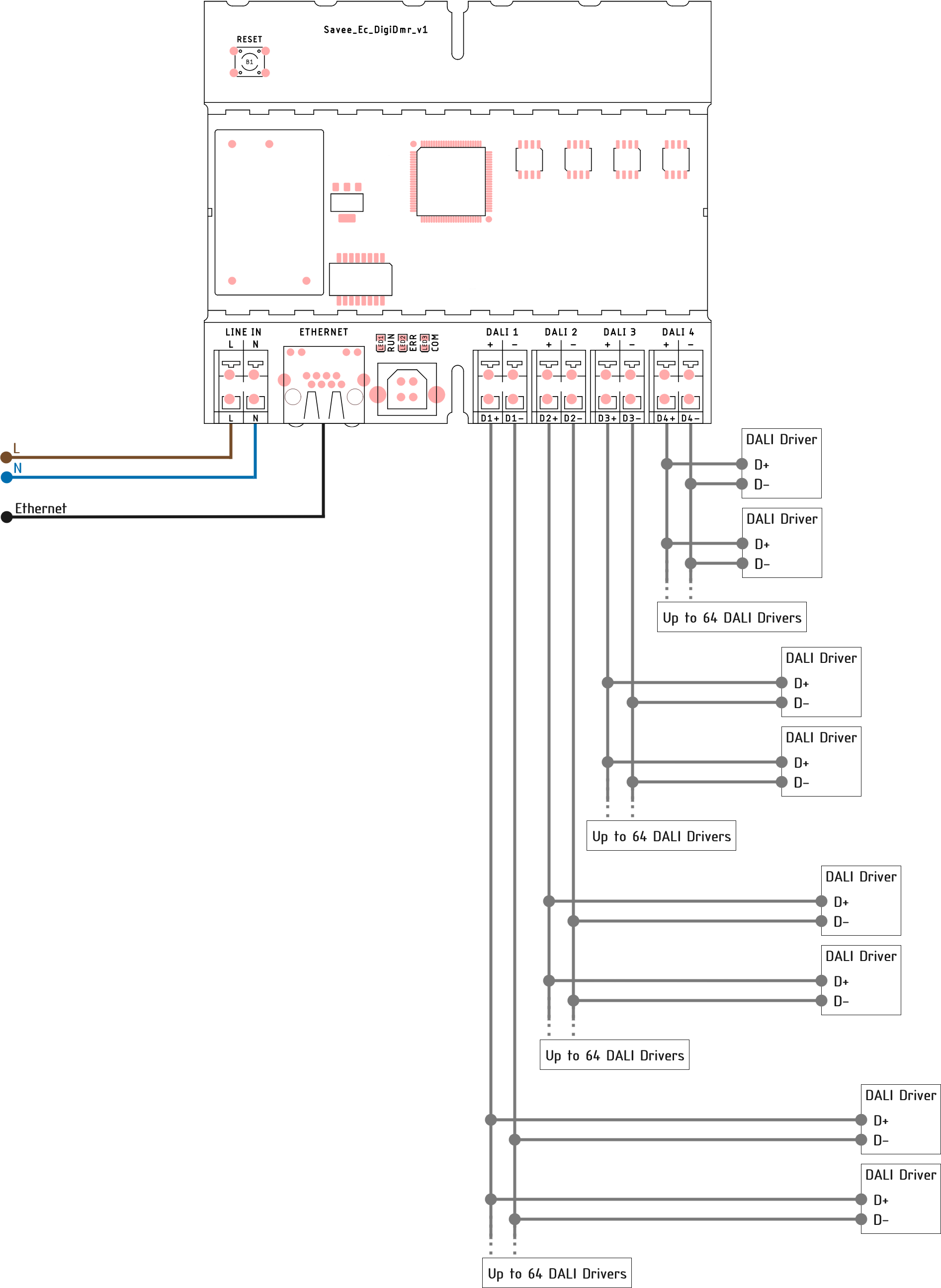

Wiring Example
