AC Input Module¶

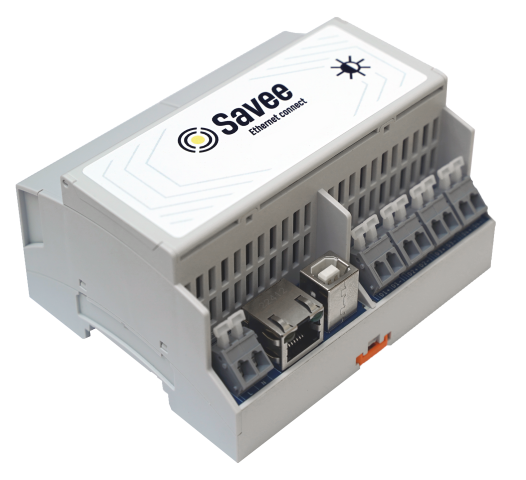

A wired device intended for installation within a distribution box. The device is designed to monitor up to eight independent AC input channels. Each channel detects the presence of an incoming AC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other AC-powered signals into the automation system.
The device communicates directly with the Savee server through an Ethernet interface.
Network configuration is managed through a USB type B connector, using a standalone configuration tool. The device can then be controlled via the Savee application.
The device mounts to a DIN rail that meets the DIN 43880 standards using a mounting slot with a foot lock for secure attachment. The electrical terminals support wire connections with a maximum cross-section of 1.5 mm².
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1,7 W |
| Input Detection Voltage | 110/230 V AC, 50/60 Hz |
| Number of Detection Inputs | 8 inputs |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107,6 x 89,7 x 60,7 mm |

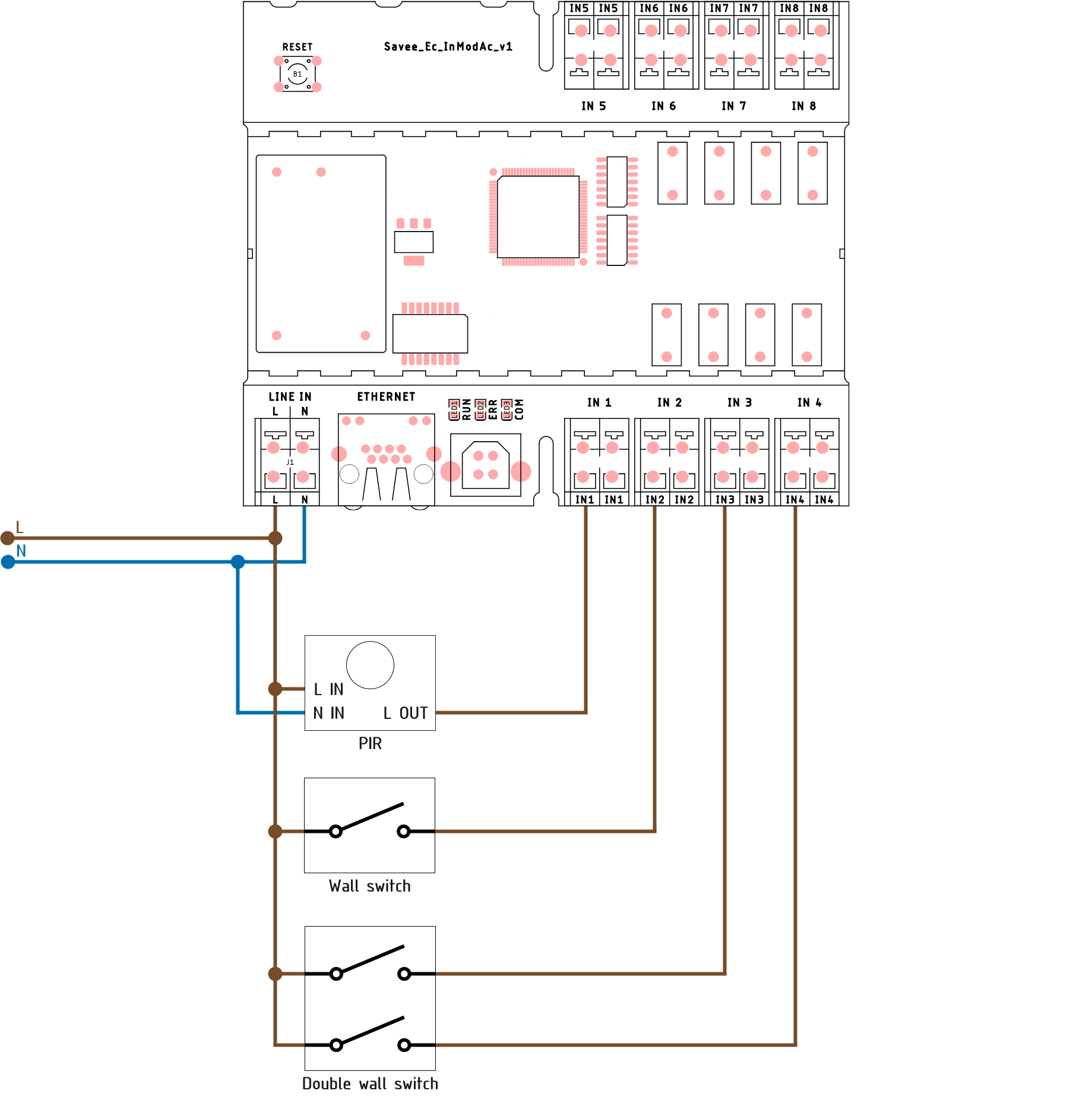

Wiring Example
DC Input Module¶
A wired device intended for installation within a distribution box. The device is designed to monitor up to eight independent DC input channels. Each channel detects the presence of an incoming DC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other DC-powered signals into the automation system.
The device communicates directly with the Savee server through an Ethernet interface.
Network configuration is managed through a USB type B connector, using a standalone configuration tool. The device can then be controlled via the Savee application.
The device mounts to a DIN rail that meets the DIN 43880 standards using a mounting slot with a foot lock for secure attachment. The electrical terminals support wire connections with a maximum cross-section of 1.5 mm².
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1,7 W |
| Input Detection Voltage | 5 V DC to 24 V DC |
| Number of Detection Inputs | 8 inputs |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107,6 x 89,7 x 60,7 mm |

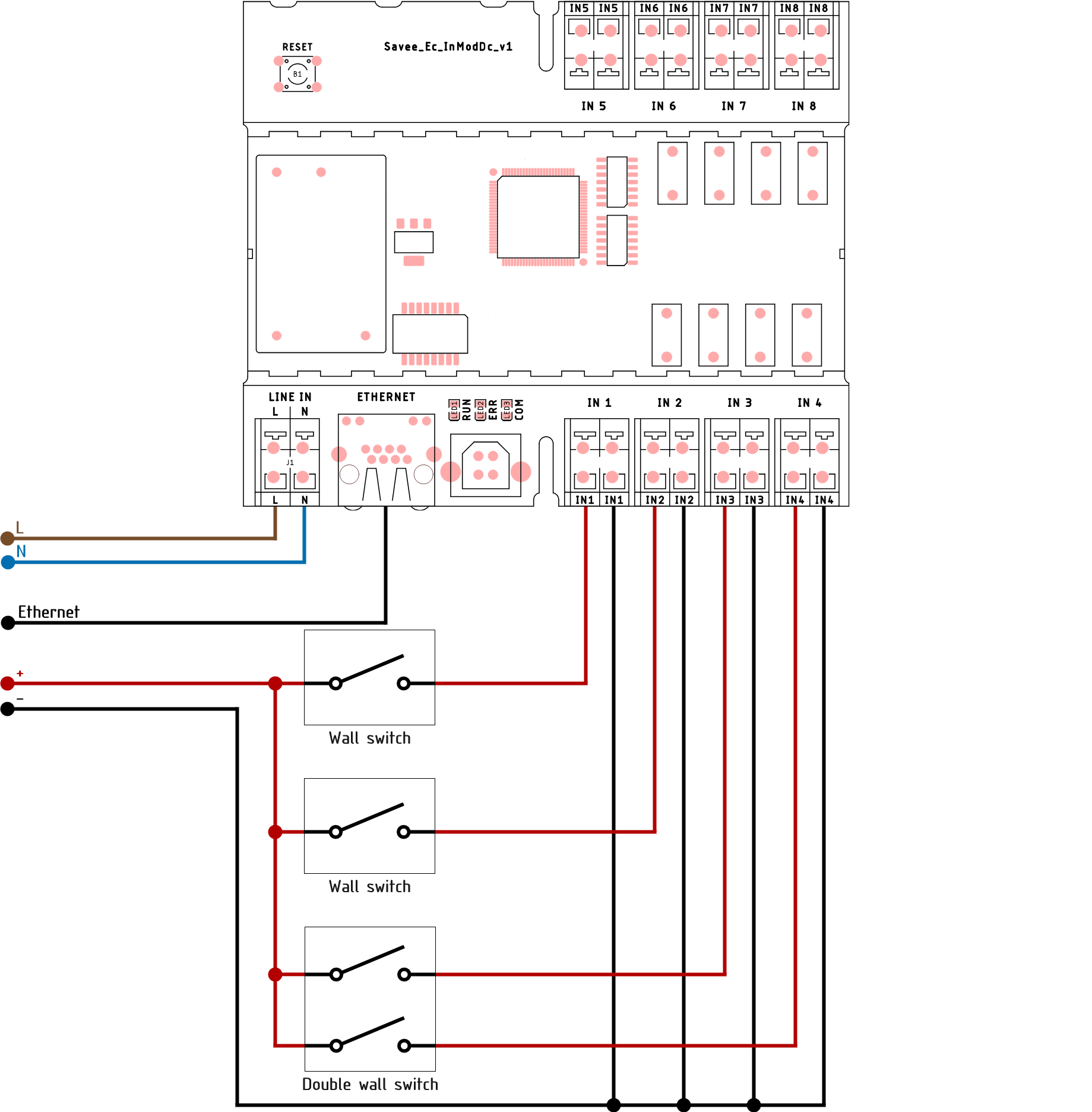

Wiring Example
