Actuators¶
Power Switch¶

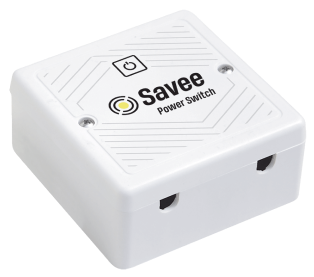

A device designed to control phase switching using one fuse-protected output channel with a continuous current of up to 6 A and a peak current of up to 8 A. A power switch can be used for automated switching of lights, machines and various other devices.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1,6 W |
| Max. Switching Current | 6 A |
| Max. Peak Switching Current | 8 A |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10 °C to 55 °C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |

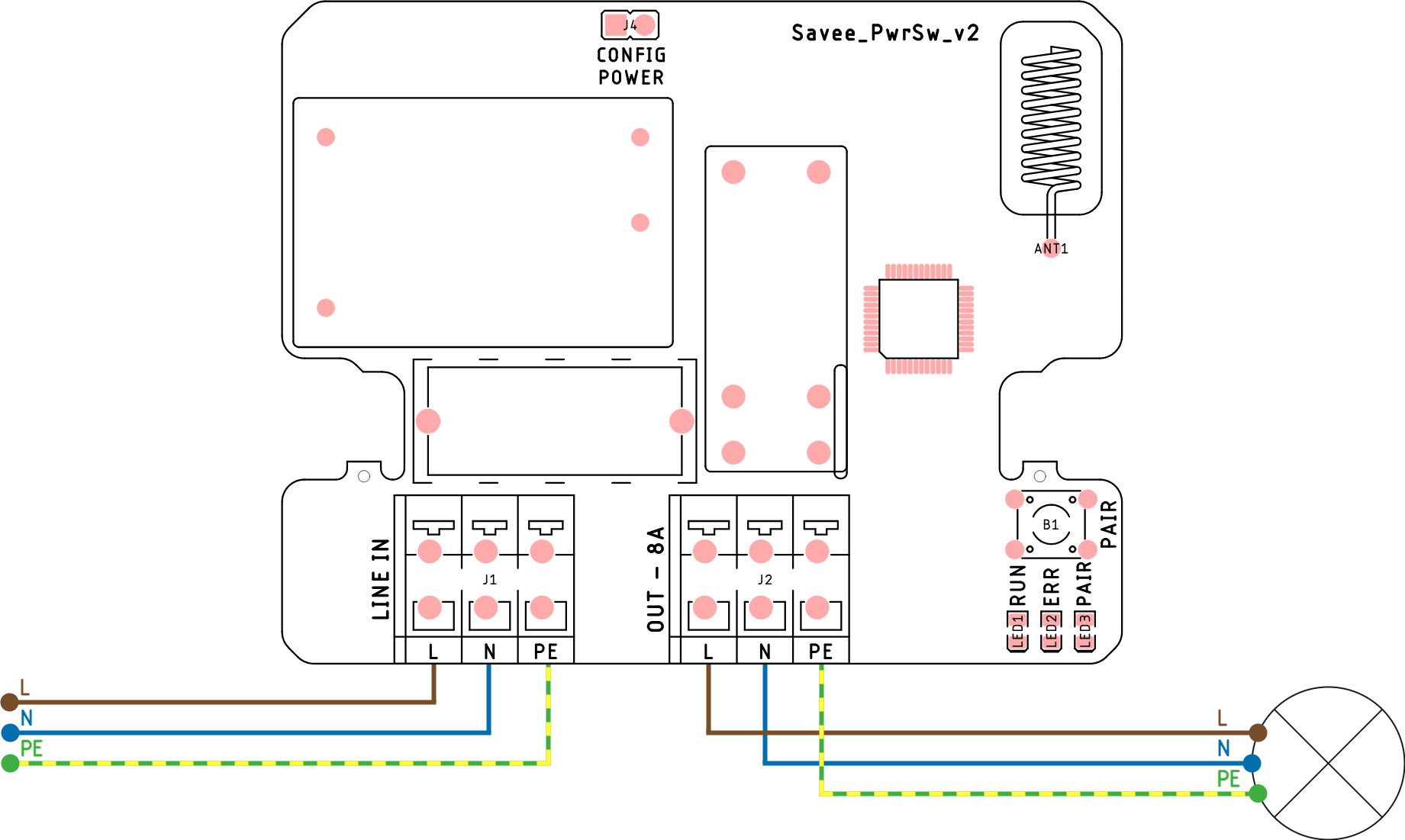

Wiring Example
Power Switch - 2 Channels¶
A two-channel device designed to control phase switching using two fuse-protected output channels with a continuous current of up to 3 A and a peak current of up to 4 A. A power switch can be used for automated switching of lights, machines and various other devices.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1,2 W |
| Number of Switched Outputs | 2 outputs |
| Max. Switching Current | 3 A per output |
| Max. Peak Switching Current | 4 A per output |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10 °C to 55 °C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |

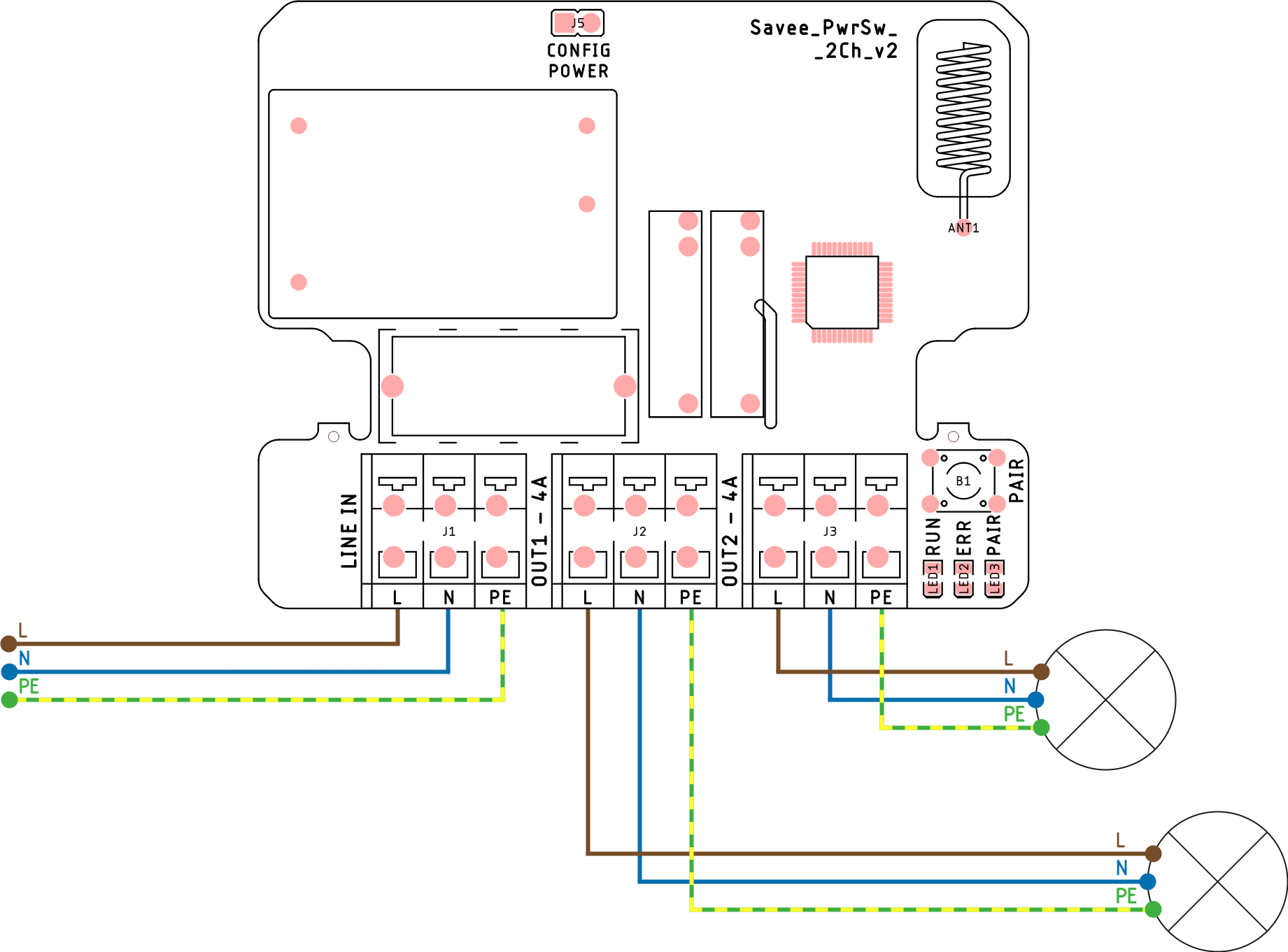

Wiring Example
Digital Dimmer¶
A device designed to control the lighting intensity using the DALI protocol. It allows connection of up to 64 lights on the bus, which are controlled uniformly (broadcast).
This device is capable of controlling the lighting intensity in the range of 0-100 % in steps of 10 %.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1 W |
| Maximum DALI Devices | 64 lights |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10 °C to 55 °C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |

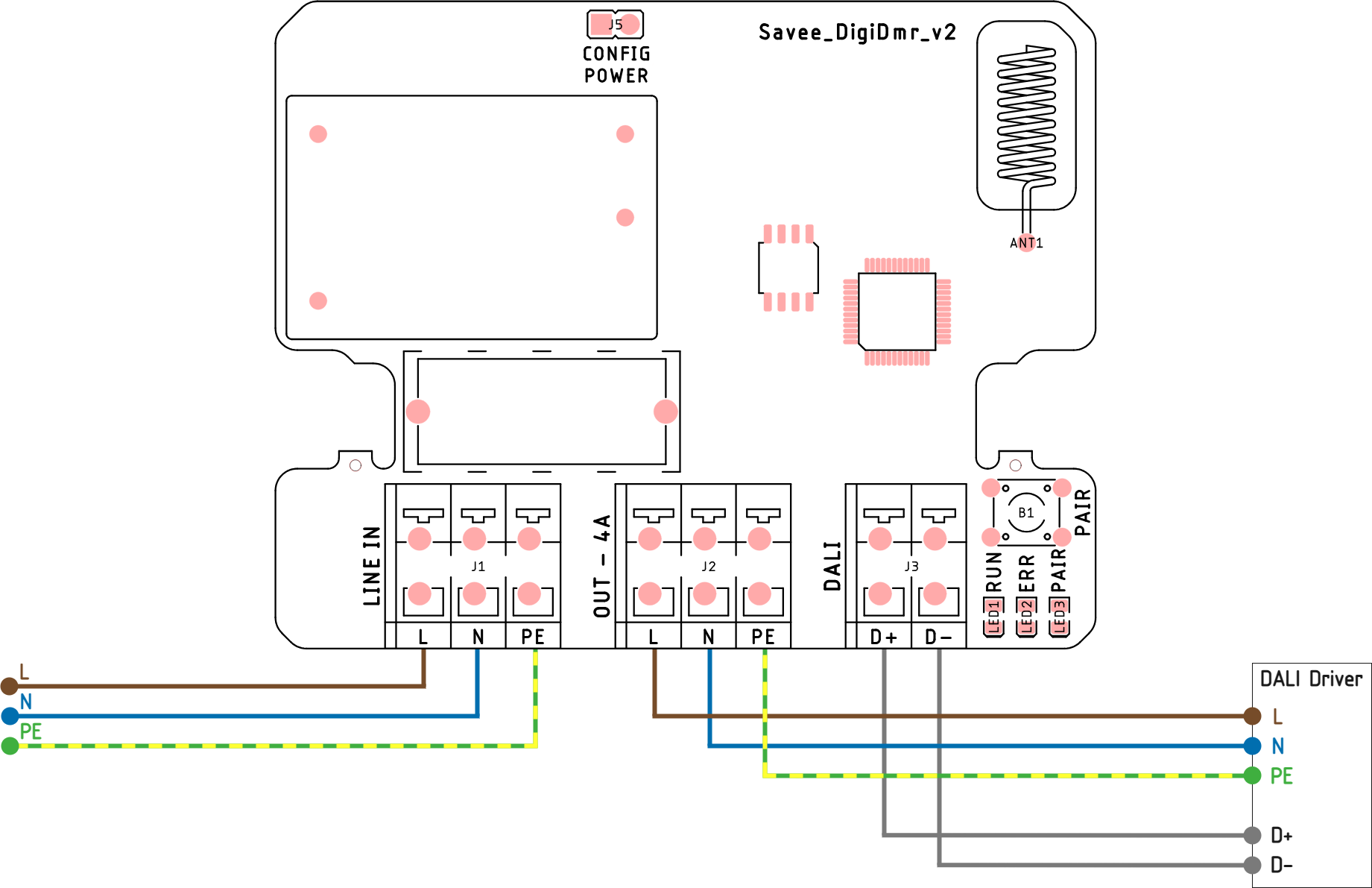

Wiring Example 1

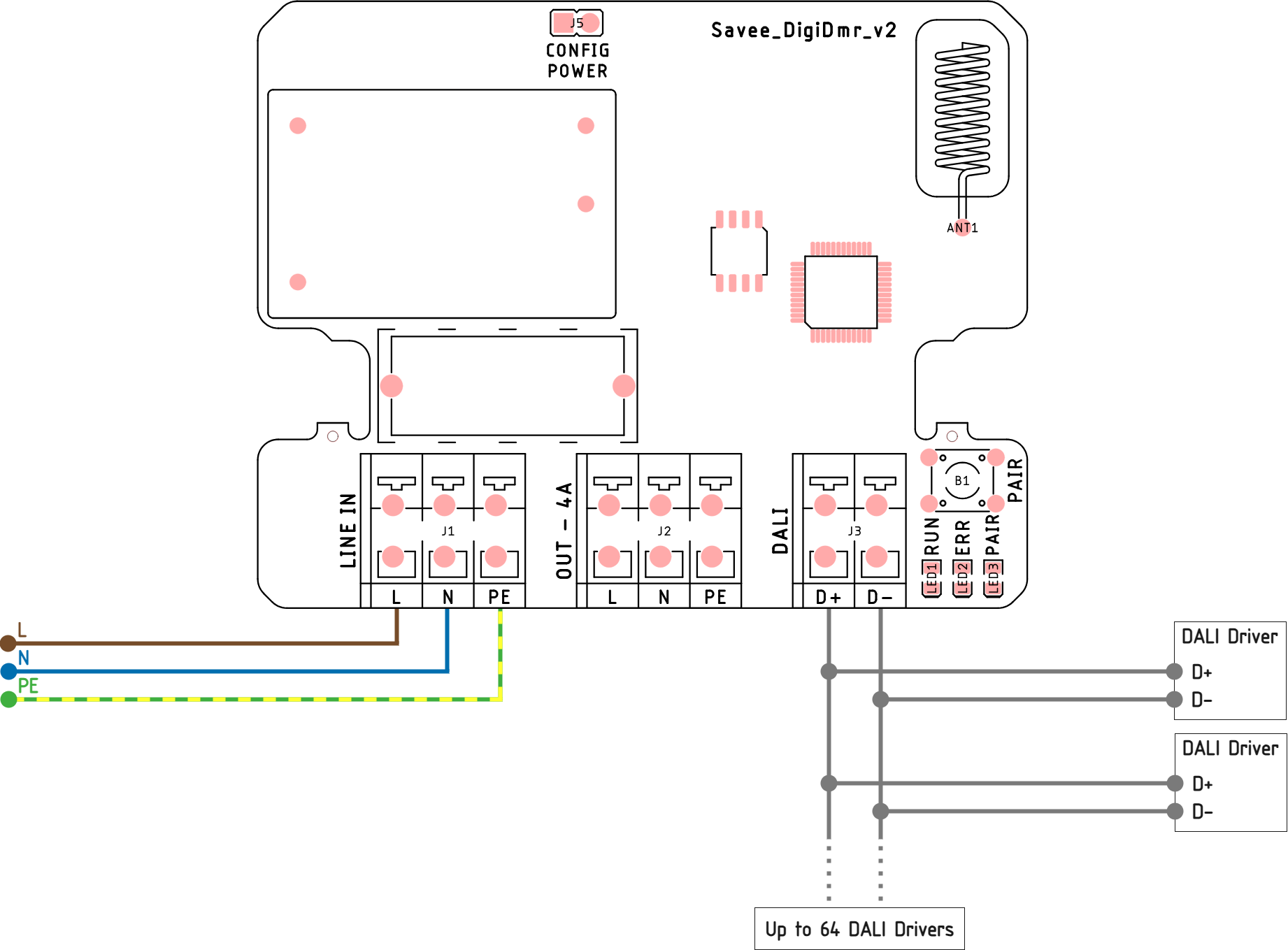

Wiring Example 2
Digital Dimmer - 2 Channels¶
A two-channel device designed to control the lighting intensity using the DALI protocol. It allows connection of up to 32 lights per output, which are controlled uniformly (broadcast). Each of the outputs can be controlled separately in the Savee web application.
This device is capable of controlling the lighting intensity in the range of 0-100 % in steps of 10 %.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 2 outputs |
| Maximum DALI Devices | 32 lights per output |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10 °C to 55 °C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |

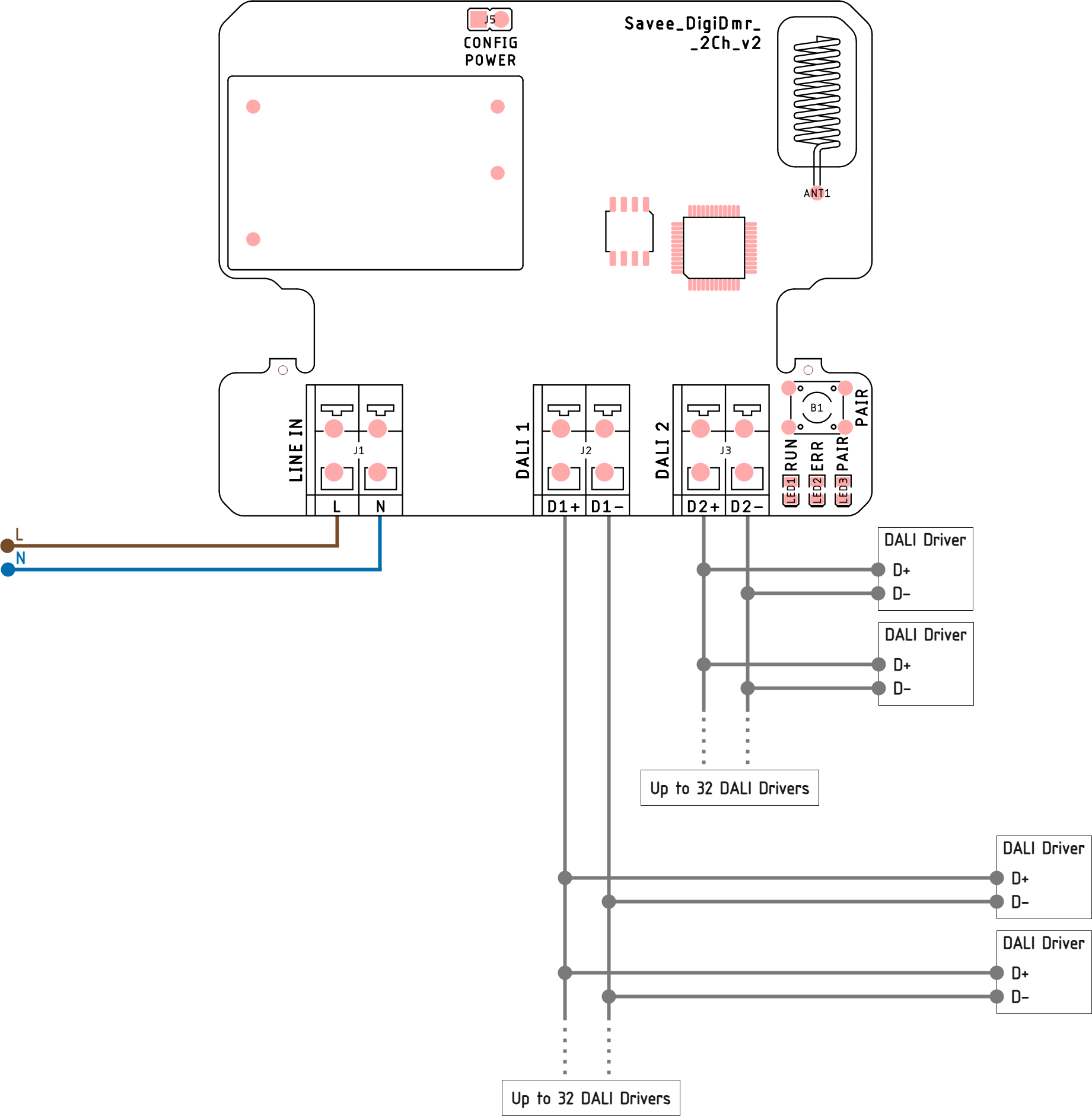

Wiring Example
Digital Dimmer - 4 Channels¶
A four-channel device designed to control the lighting intensity using the DALI protocol. It allows connection of up to 16 lights per output, which are controlled uniformly (broadcast). Each of the outputs can be controlled separately in the Savee web application.
This device is capable of controlling the lighting intensity in the range of 0-100 % in steps of 10 %.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 4 outputs |
| Maximum DALI Devices | 16 lights per output |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10 °C to 55 °C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |

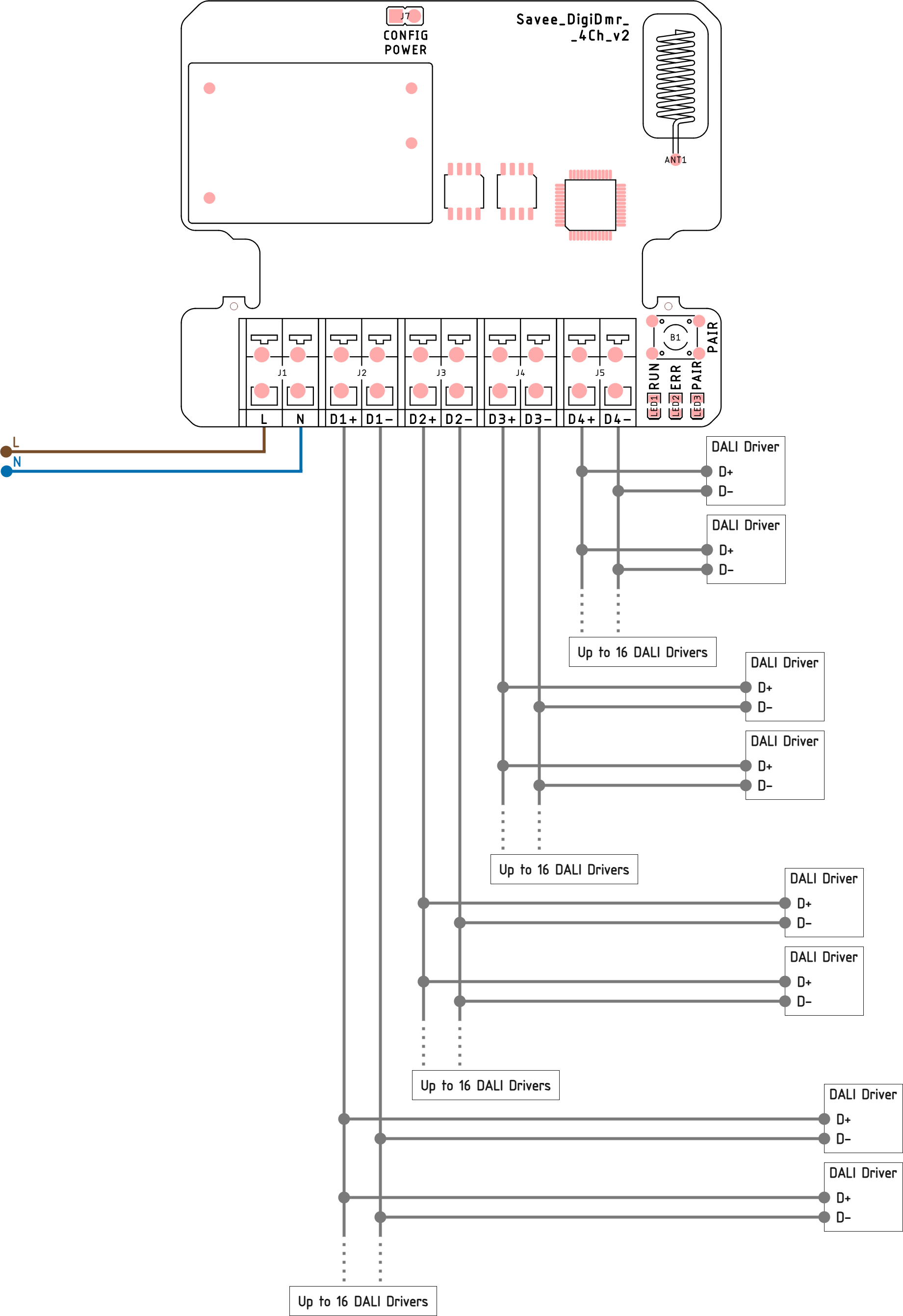

Wiring Example
