Controls¶

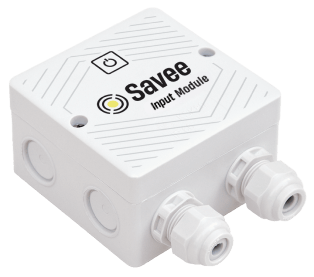

AC Input Module IP66¶
A device designed to monitor up to four independent AC input channels. Each channel detects the presence of an incoming AC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other AC-powered signals into the automation system. This is an outdoor version designed to withstand the effects of nature's elements.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 0,8 W |
| Input Detection Voltage | 110/230 V AC, 50/60 Hz |
| Number of Detection Inputs | 4 |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Wiring Example 1
Wiring Example 2
DC Input Module IP66¶
A device designed to monitor up to four independent DC input channels. Each channel detects the presence of an incoming DC signal and triggers actions based on the configuration in the system's web application. The module enables integration of external switches, sensors, or other DC-powered signals into the automation system. This is an outdoor version designed to withstand the effects of nature's elements.
It is required to mount the device with the cable outlets facing downwards (antenna on the PCB facing up). This assures a higher range of wireless communication between the system devices, otherwise there could occur device communication problems.
Parameters
| Parameter | Value |
|---|---|
| Supply Voltage | 110/230 V AC, 50/60 Hz |
| Standby Power Consumption | 0,7 W |
| Input Detection Voltage | 5 V DC to 24 V DC |
| Number of Detection Inputs | 4 |
| Communication Band | 868 MHz |
| Transmit Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Wiring Example
